Automated Design

12,000+ Simulated. Top 100 Ranked.

Automated Design builds pumping unit, pump, and rod combinations for a well and simulates each one. It returns the top 100 ranked on performance and installed cost.

Request Demo Run a 5-Well Pilot
Design Combination Space Installed cost → Design quality →

Manual iterations

~25 designs

Automated Design simulates

the full design space

  • ~25 manual designs
  • 1M+ designs simulated
  • Top 100 ranked

In Product

Set the Constraints

Choose the template, scoring criteria, and well limits. Search stays in those bounds.

How It Works

Simulate Millions of Combinations.
Keep the Top 100

From your equipment options and well data, Automated Design builds pumping unit, pump, and rod combinations, simulates each, and keeps the top 100.

Filtering 1M+ Primary Evaluation 200K Secondary Evaluation 80K Tertiary Evaluation 20K Dynamic Evaluation Top 100

Installed Cost

Price Every Design Before You Commit

Every ranked design carries installed cost on your cost basis. On one well, the top five can differ significantly. Pick on performance and price before you commit.

Higher-cost ranked design Cost A Same well, same cost basis
Lower-cost ranked design Cost B On your cost basis
  • Rod string Taper and grade
  • Pump Size and spacing
  • Unit and run life Equipment and failures
Higher Ranked Design A Lower Ranked Design B Cost delta
Installed cost on your cost basis across the top ranked designs.

The Stack

Same Engine. Larger Search

RodSim designs one string. Dynamics sweeps how it runs. Automated Design searches the full space and returns the top 100 - same physics, larger search.

Search space →
  1. RodSim 1 Sim Single Design
  2. Dynamics 1,200+ Scenarios Parametric Sweep
  3. Automated Design 1M+ Designs Design Search

In the Workspace

Compare, Trace, and Inspect Every Design

Ranked results are the start. Version history, side-by-side comparison, and Dynamics charts keep every iteration auditable before you accept equipment.

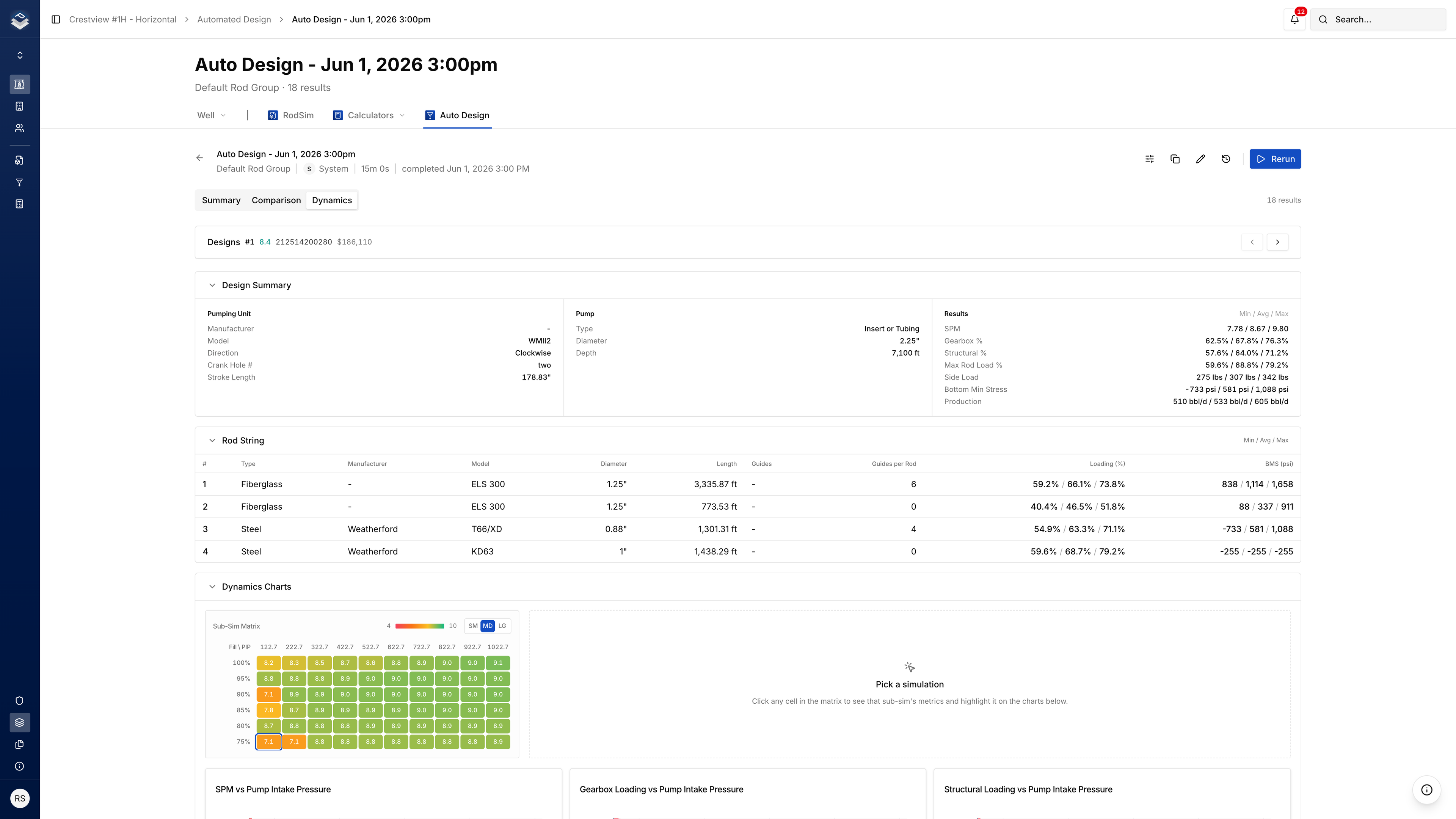

Version History

Every criteria change and ranked result set is snapshotted. Restore a prior version as a new run without losing the current design.

Design Comparison

Compare pumping unit, pump, rod string, loads, and installed cost across candidates in one grid before you accept a design.

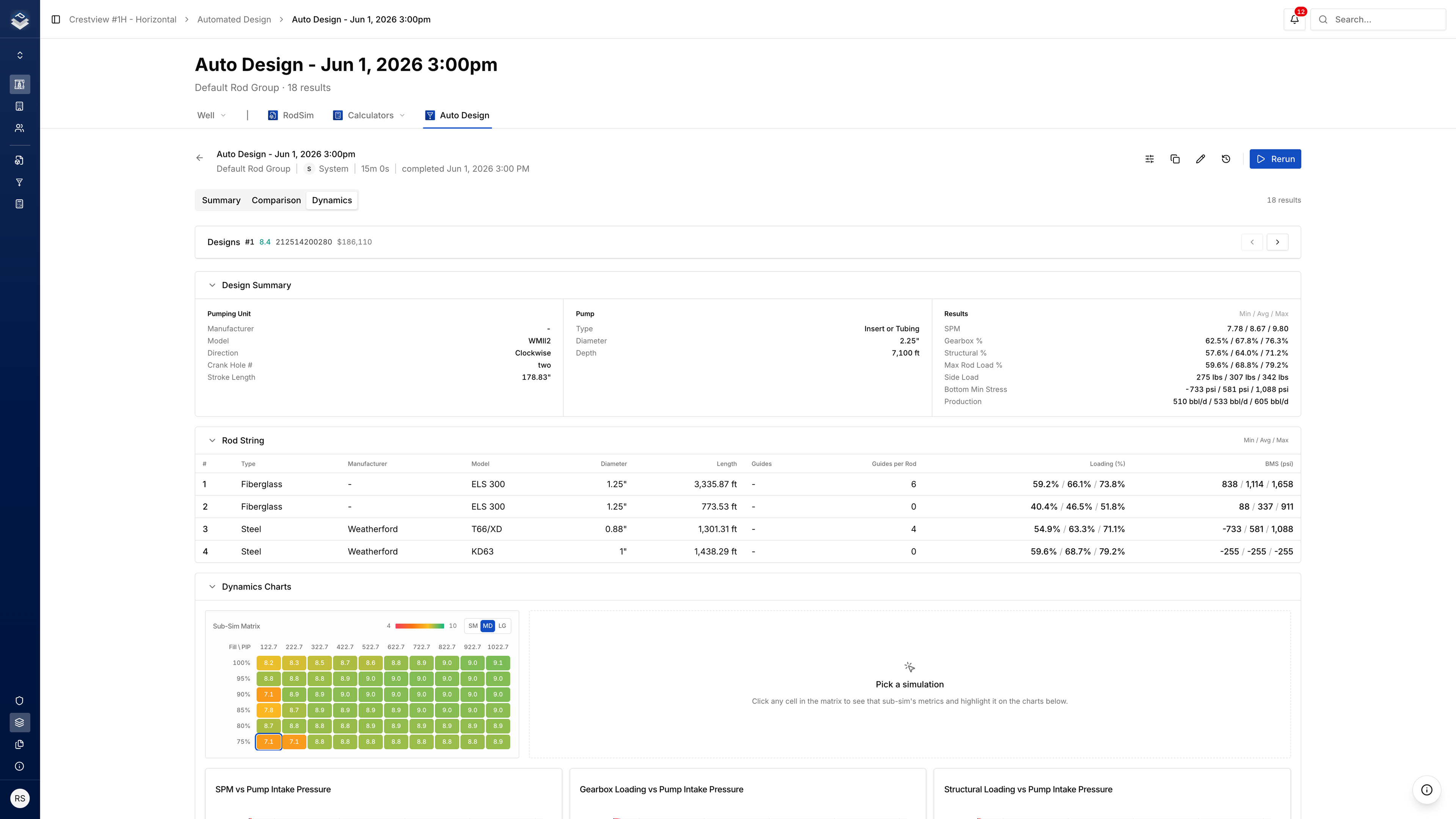

Dynamics Analysis

Open any candidate for min, avg, and max loads, rod taper breakdown, and dynacard charts from the same RodSim Dynamics engine.

Platform

From Your Data Lake to Ranked Designs

Pull wells from Snowflake, Databricks, WellView, or file import. Run Automated Design. Open the ranked list in the workspace, or the same job over REST, MCP, and agents.

Data in

  • Snowflake
  • Databricks
  • WellView WellView
  • Azure
  • AWS
  • File import
PETROBENCH Automated Design Filtering 1M+ Primary Evaluation 200K Secondary Evaluation 80K Tertiary Evaluation 20K Dynamic Evaluation Top 100

Data out

Data in

  • Snowflake
  • Databricks
  • WellView WellView
  • Azure
  • AWS
  • File import

PetroBench

Automated Design

Search top to bottom, same engine as RodSim

  1. Filtering 1M+
  2. Primary Evaluation 200K
  3. Secondary Evaluation 80K
  4. Tertiary Evaluation 20K
  5. Dynamic Evaluation Top 100

Data out

FAQ Automated Design

Questions Teams Ask First

What production and engineering managers ask before an Automated Design pilot.

Yes. Every candidate runs through the same RodSim engine your engineers already use. The search expands how many designs get simulated. The physics stays the same.

Feasible designs are scored on performance against your constraints, then ranked with installed cost on your cost basis. The Top 100 is the shortlist your team reviews in the workspace.

A well record with geometry, production context, and the equipment catalogs you design against. Pull from Snowflake, Databricks, WellView, or file import, same paths you already use in PetroBench.

Yes. Runs use your org equipment libraries and templates. The search stays inside gear your team is willing to order, not an open catalog of everything.

Your team. Cost basis is configured for the org so every ranked design carries installed cost on numbers you already trust for procurement.

No. Automated Design returns a ranked shortlist. Engineers pick the design to issue. Ordering and field work stay on your existing approval path.

Runs complete in the workspace after the search finishes against your constraints. Exact timing depends on well complexity and how wide you open the equipment set. We walk a real well on the demo.

Yes. Most teams begin with a well they already know, review the Top 100 with installed cost, then expand to a 5-well pilot with success criteria.

Same PetroBench platform. Open ranked results in the workspace, or call the same job over REST and MCP. Vector can work on the same wells under your scopes, writes stay behind engineer signoff.

Yes. Ranked candidates sit next to the installed design on the same well so engineers can see where cost and constraints moved, not a separate spreadsheet export.

Next

See Automated Design on One of Your Wells

Start with a well you already design. We run Automated Design and go through the top 100 with installed cost.

  • 1 Load your well and template
  • 2 Review the top 100 ranked on cost
  • 3 Expand to a 5-well pilot
Request Demo Run a 5-Well Pilot
